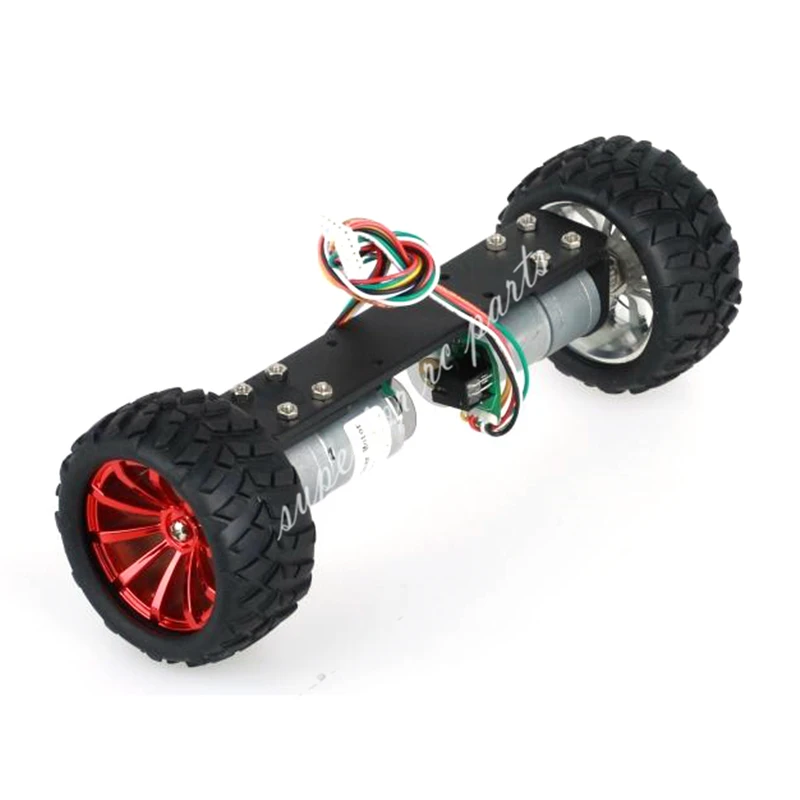

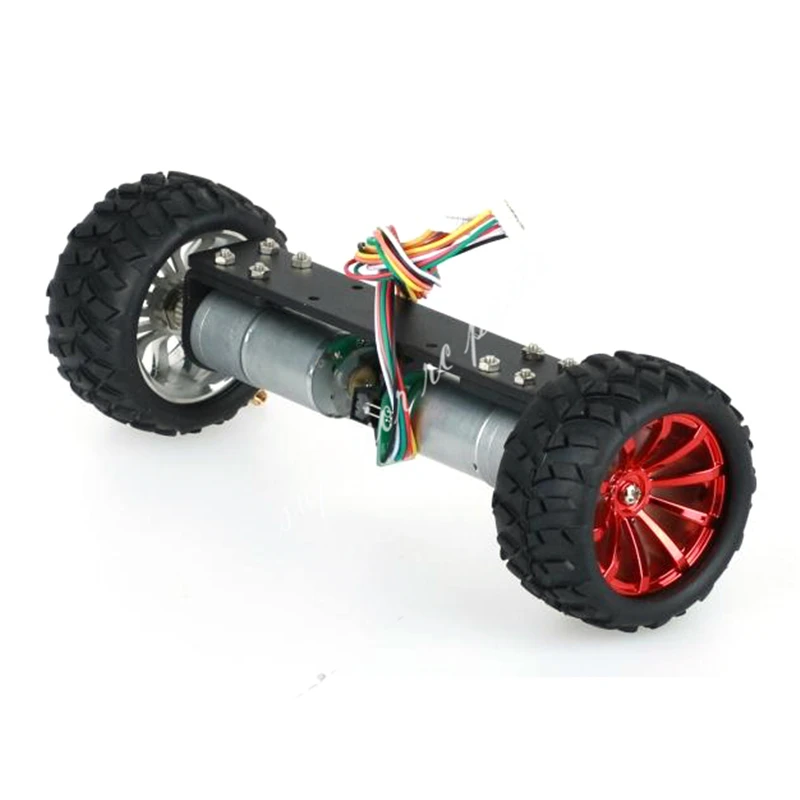

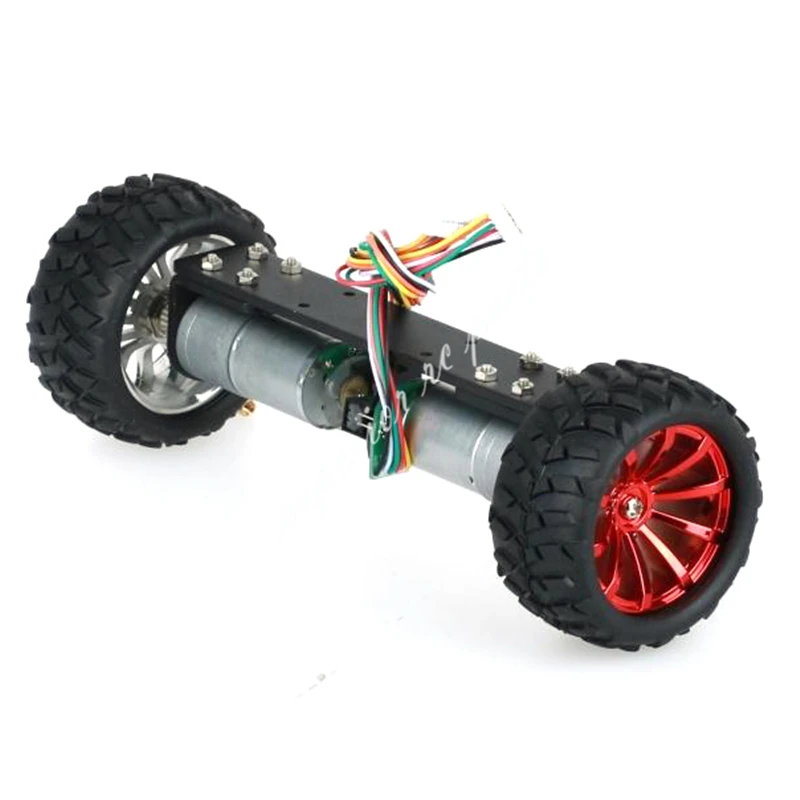

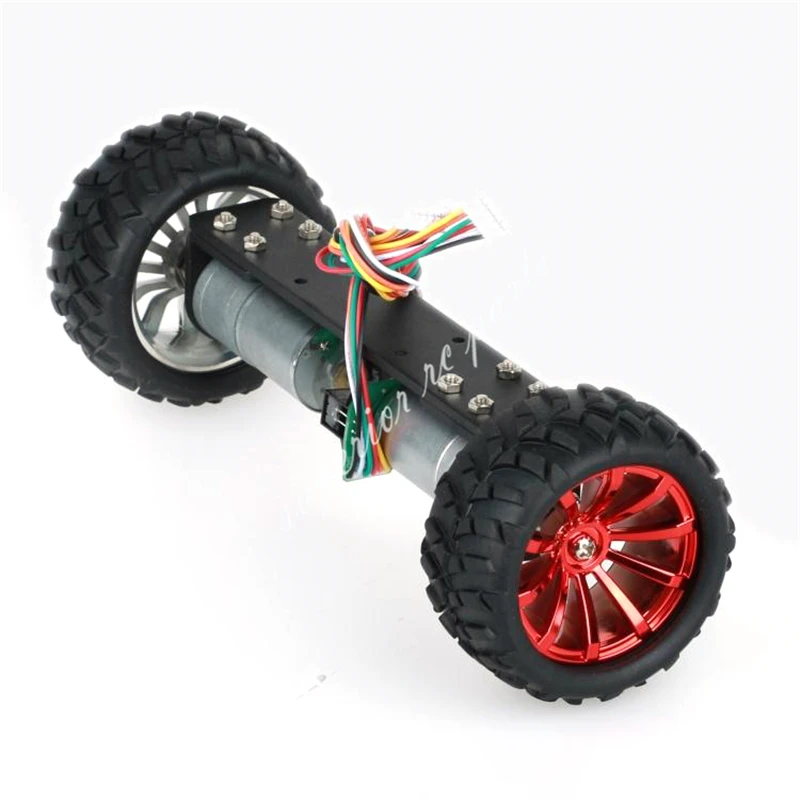

JGA25-360 Two Wheeled Vehicle Wheel Frame RC Car Chassis Balance Car with 1:21 Motor
Full metal frame chassis, high-precision photoelectric speed encoding spike Hall low-precision test. All metal gear motors, non-second-hand old motor, coated tires! ! Motor deceleration ratio default 1:21, a 360-speed tachometer to ensure speed accuracy. Whether or not to buy a car, click here to you can download the car's source code
| Product parameters |
Vehicle size: 217*72*72
Vehicle weight: 508g
Output pulse: 360cpr/ circle
Voltage range: 6-24v
Rated voltage: 12v
No load speed: 201rpm/m
No load current: 50mA
Load torque: 0.53kg*cm
Rated power: 1.25W
Load current: 300a
The motor parameter is the default parameter, please note the other deceleration ratio

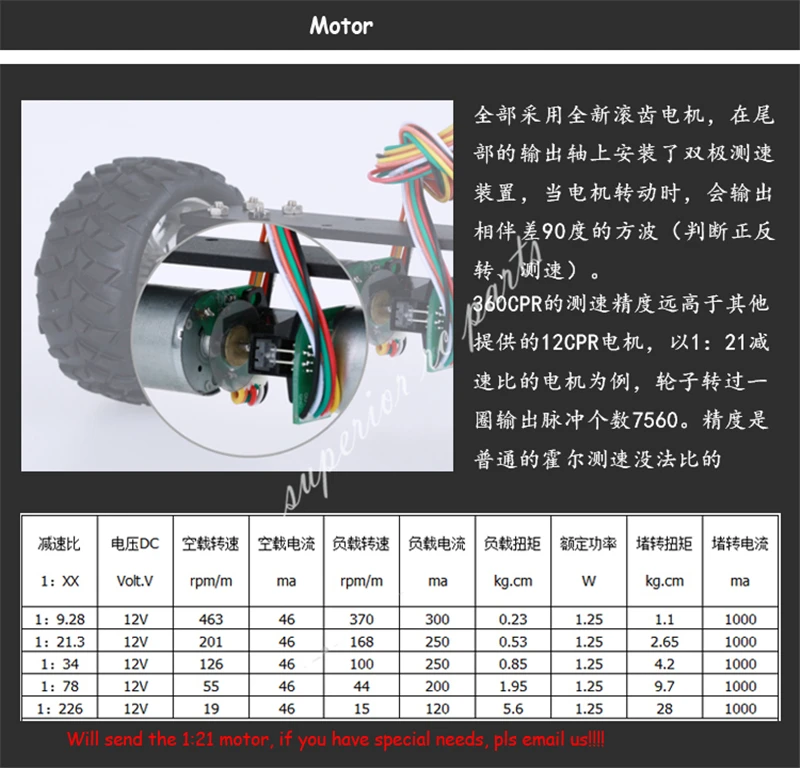

| Reduction ratio 1:XX | Voltage DC Volt.V | No-load speed rpm/m | no-load current ma | load speed rpm/m | load current ma | load torque kg.cm | rated power W | Stall torque kg.cm | locked rotor current ma |
| 1:9.28 | 12V | 463 | 46 | 370 | 300 | 0.23 | 1.25 | 1.1 | 1000 |
| 1:21.3 | 12V | 201 | 46 | 168 | 250 | 0.53 | 1.25 | 2.65 | 1000 |
| 1:34 | 12V | 126 | 46 | 100 | 250 | 0.85 | 1.25 | 4.2 | 1000 |
| 1:78 | 12V | 55 | 46 | 44 | 200 | 1.95 | 1.25 | 9.7 | 1000 |
| 1:226 | 12V | 19 | 46 | 15 | 120 | 5.6 | 1.25 | 28 | 1000 |
| Note: What deceleration ratio please note, the default hair 1:21 deceleration ratio. | |||||||||
| Shipping list |
| order number | Name | quantity | Remarks |

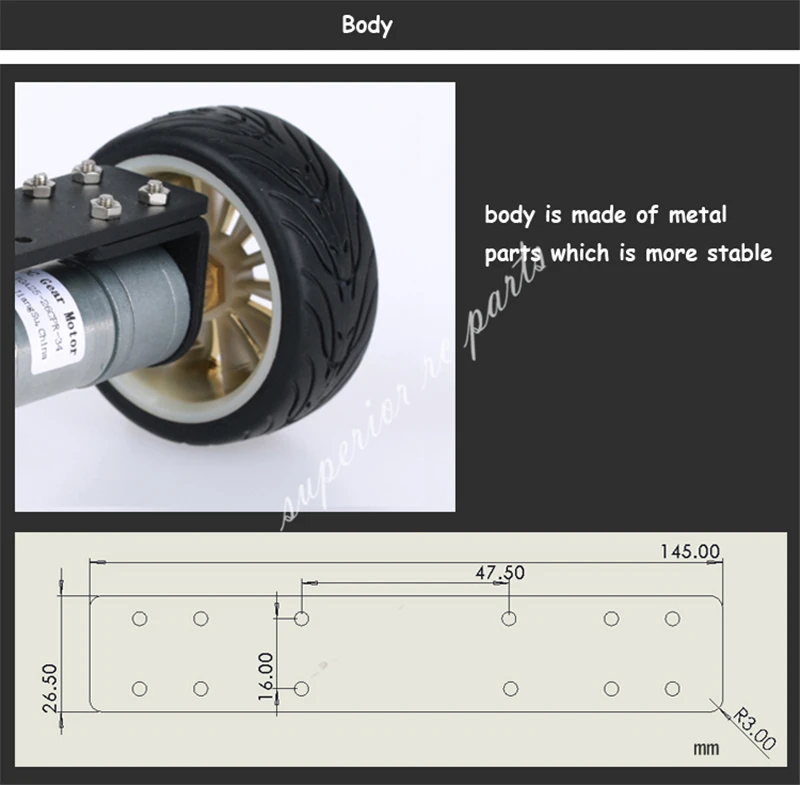

| 1 | Car chassis | 1 block | Black, metal |
| 2 | Car expansion chassis | 2 blocks | Black, acrylic |
| 3 | JGA25-360CPR motor | 2 | Default 1:21 |
| 4 | Coupling 17-4MM | 2 | copper |
| 5 | 25 motor bracket | 2 | Black, metal |

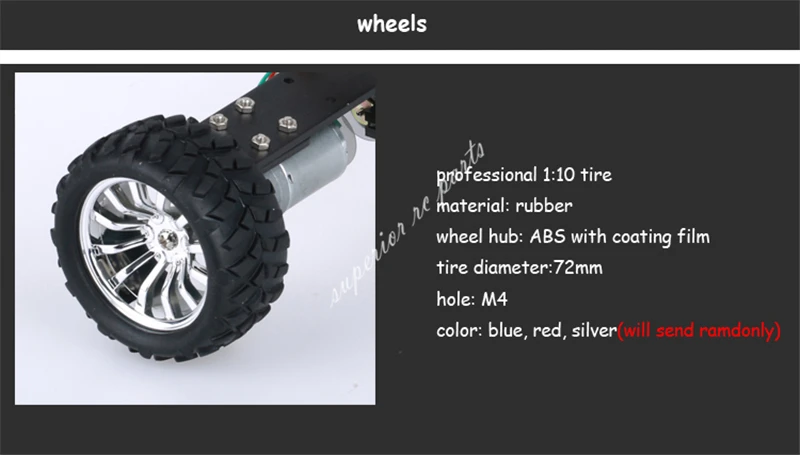

| 6 | 72MM wheel | 2 | Red and blue silver color random |
| 7 | Copper column 12MM | 4 | with screw |
| 8 | Copper column 30MM | 4 | Matching screw |

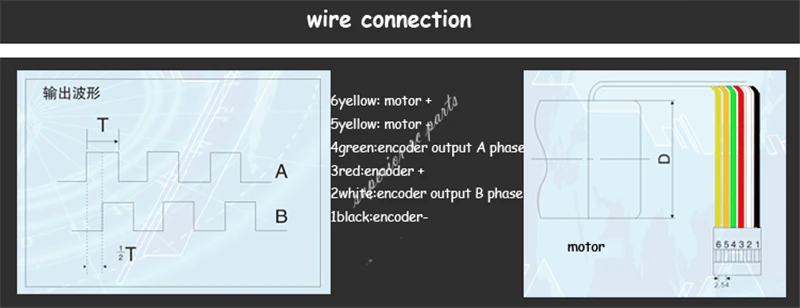

Motor encoder information: click here
| Product details |

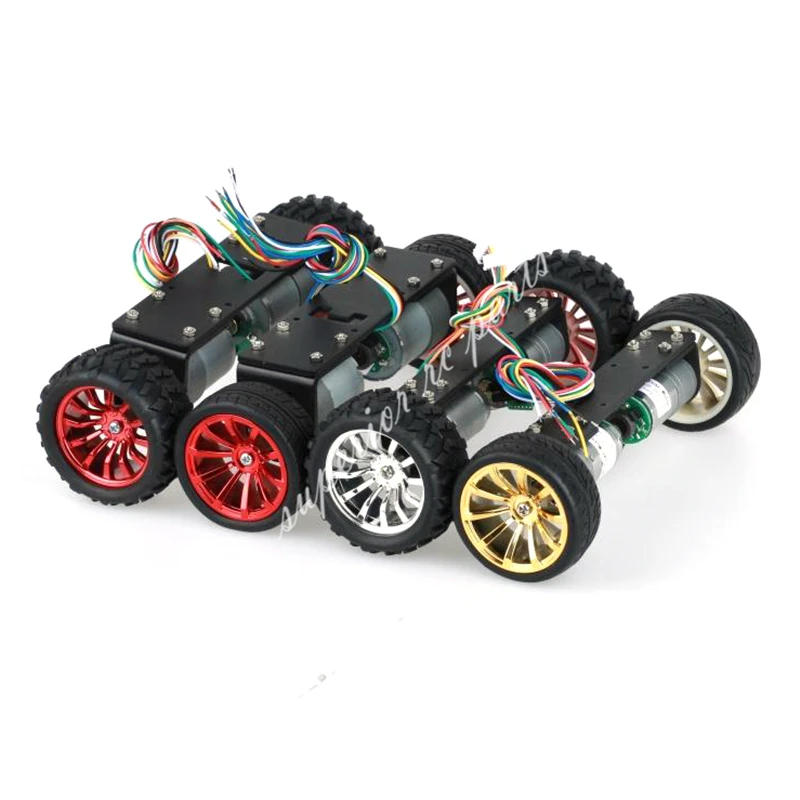

| Product Photo |
 |  |  |  |
 |  |  |  |
Unit Type:
piece
Package Weight:
0.6kg (1.32lb.)
Package Size:
10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
