Special Offers CNIKESIN Numerical Control Digital Display DC Booster 420W Constant Pressure Constant Current Electronic Components (D2B3)

Product ID : 32571733000

Price : $33.64

Discount Price : $31.96

VISIT WEBSITE NOW

Item specifics

•
  Brand Name:
  CNIKESIN



•
  Application:
  Computer



•
  Dissipation Power:
  420W



•
  Supply Voltage:
  *



•
  Condition:
  New



•
  Model Number:
  Voltage Regulator



•
  Type:
  Voltage Regulator



•
  is_customized:
  Yes



•
  Operating Temperature:
  -40~ 85



•
  Advantage1:
  Brand new 100% High quality



•
  Advantage2:
  Long life Low ESR



•
  Advantage3:
  CE, RoHS Authentication



•
  Advantage4:
  Inventory Fast deliver


Product Description









Item Description

Features and Benefits

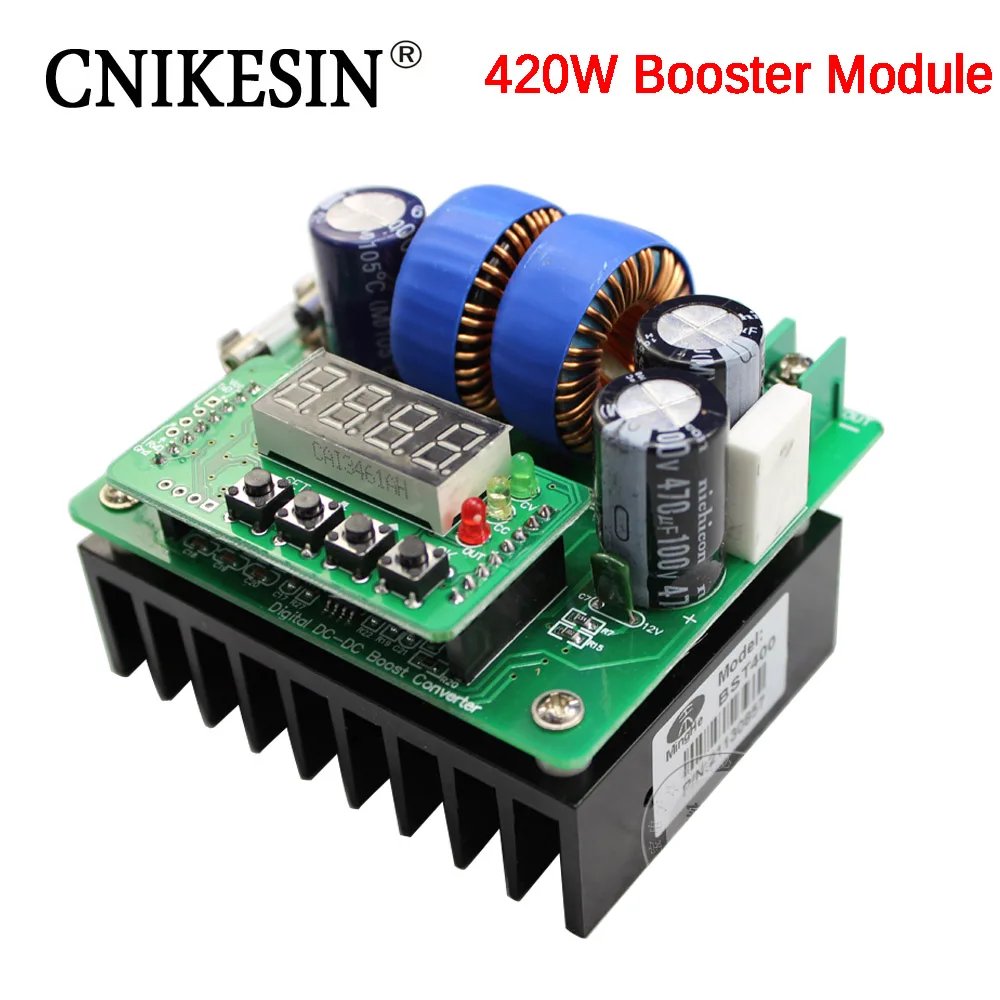

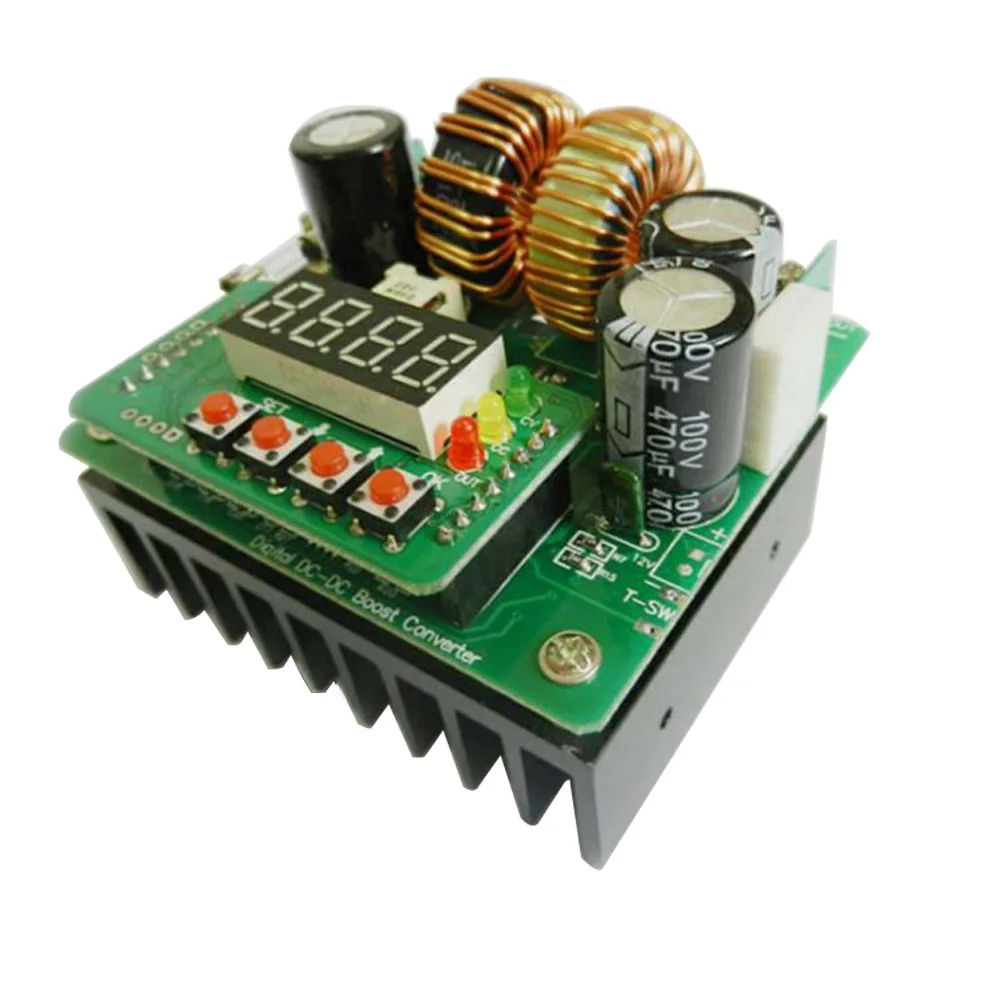

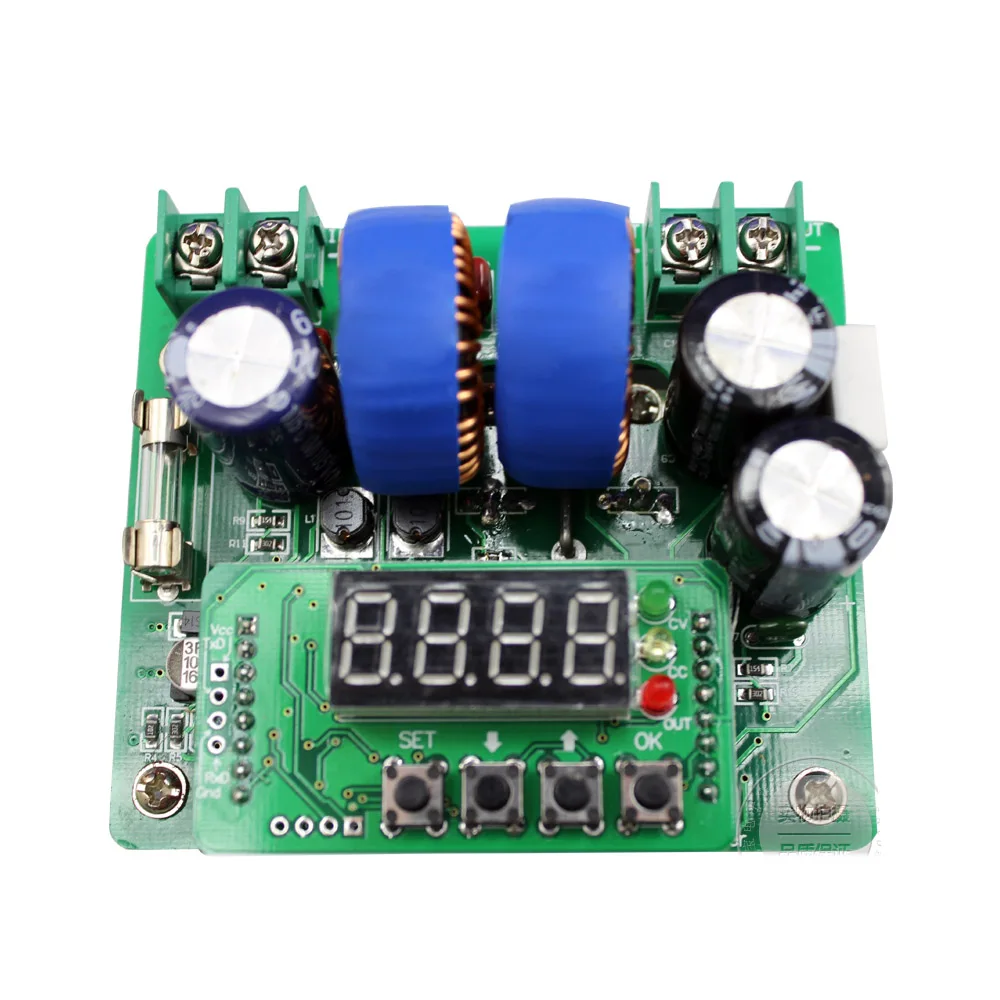

The use of advanced microprocessors, the key precisely regulated output voltage, current

u High-quality power devices , with the periphery of precision op amp loop consisting of CV and CC , greatly improves the performance of the module

u 1mm using two high-current double -wound inductor, input using a 1000uF / 63V electrolytic capacitor , the output using two 470uF / 100V electrolytic capacitor , the output voltage quality is very good

u uses four high- brightness LED , real-time display the output voltage, current , you can manually switch the show can also be set to automatically turn significantly

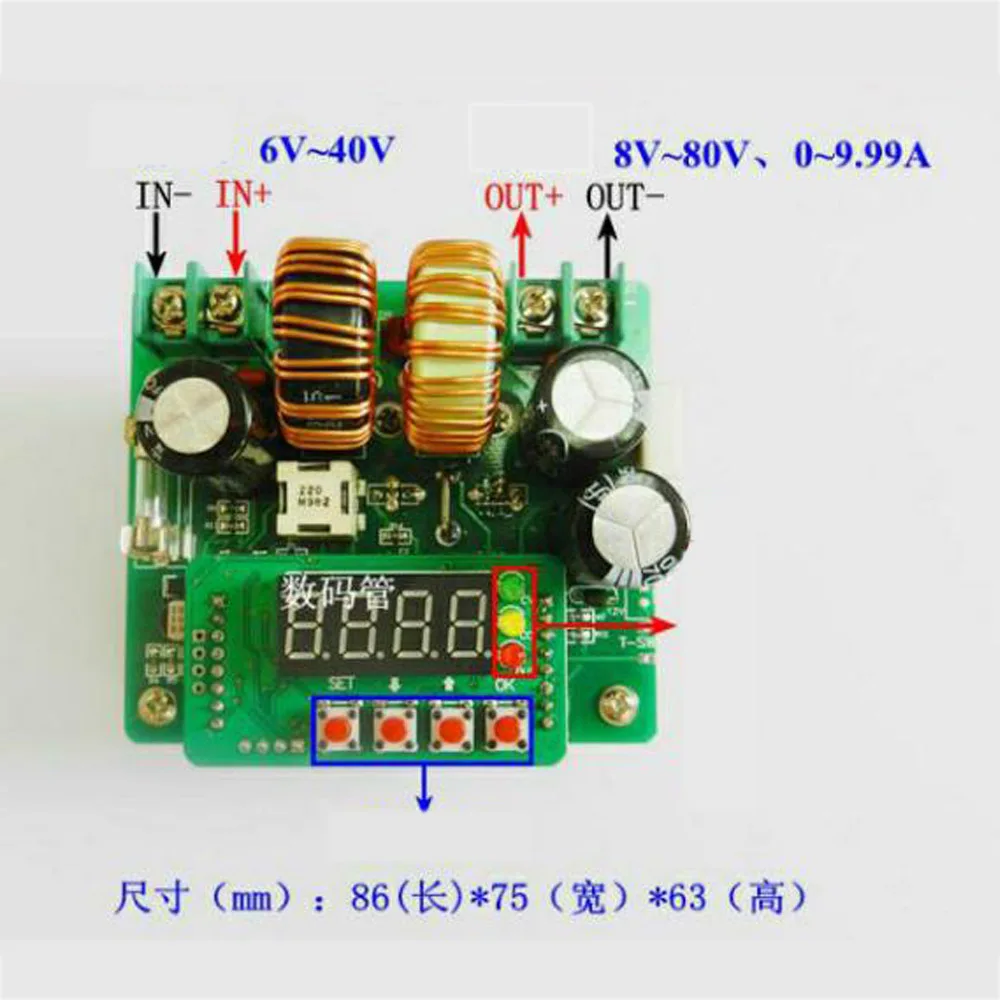

l Input voltage : 6V ~ 40V

l Input Current : 15A (max)

l Output voltage : 8V ~ 80V

l Output Current : 0 ~ 9.99A

l voltage , current resolution : 0.01V, 0.01A

l Output power : 400W (max) input voltage effective power P = V * 10A

Note : This needs to be stated , the nominal 400W maximum power means that the module under specific operating conditions , at different input voltage , the maximum output power is limited by the maximum input current limit declined. For example :

Input voltage is 12V: maximum output power P = 12V * 10A = 120W

The input voltage is 24V: maximum output power P = 24V * 10A = 240W

The input voltage is 40V: maximum output power P = 40V * 10A = 400W

l Conversion efficiency: up to 95% (input voltage , current and output voltage, current affect the conversion efficiency)

l Short circuit protection : 15A fuse

l size (mm): 86 ( length ) * 75 ( width ) * 63 ( high )

l Weight : 295g



Applications

1, DIY an adjustable output power , can be connected to the input 6V, 12V, 24V, 36V power supply or battery , the output voltage can be adjusted between 8V ~ 80V, output voltage is higher than the input voltage.

2. Boost charger, 12V power supply can be used to charge the battery is higher than 12V , such as 24V battery , the charging current can be adjusted.

3 , for electronic equipment supply , as long as the voltage and current adjusted to the rated voltage and current electronic devices to allow the device to work properly. Note that pre- supply voltage must be lower than the rated voltage.



















Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  0.35kg (0.77lb.)



•
  Package Size:
  15cm x 10cm x 15cm (5.91in x 3.94in x 5.91in)
