Best Offers - 10 pcs Feetech FM90 Gear Motor Micro RC Servo Motor Gear Box For RC Car Boat Robot Drones Wonderfull
Buy - 10 pcs Feetech FM90 Gear Motor Micro RC Servo Motor Gear Box For RC Car Boat Robot Drones Best Offers
Use:
Vehicles & Remote Control Toys
RC Parts & Accs:
Motors
Upgrade Parts/Accessories:
Wheel Hub
Technical parameters:
Value 2
Brand Name:
Feetech
For Vehicle Type:
Airplanes
Tool Supplies:
Assembly Category
Size:
32.3mm x 12.3mm x 29.9mm
Remote Control Peripherals/Devices:
Motor
Four-wheel Drive Attributes:
Assemblage
Model Number:
FM90
Material:
Plastic and Metal
Name:
FEETECH FM90 Motor
Application:
RC Quadcopter , Car , Boat , Robot , Drones , Education Platform Kit
Related Products
10 pcs Feetech FM90 Gear Motor Micro RC Servo Motor Gear Box For RC Car Boat Robot Drones

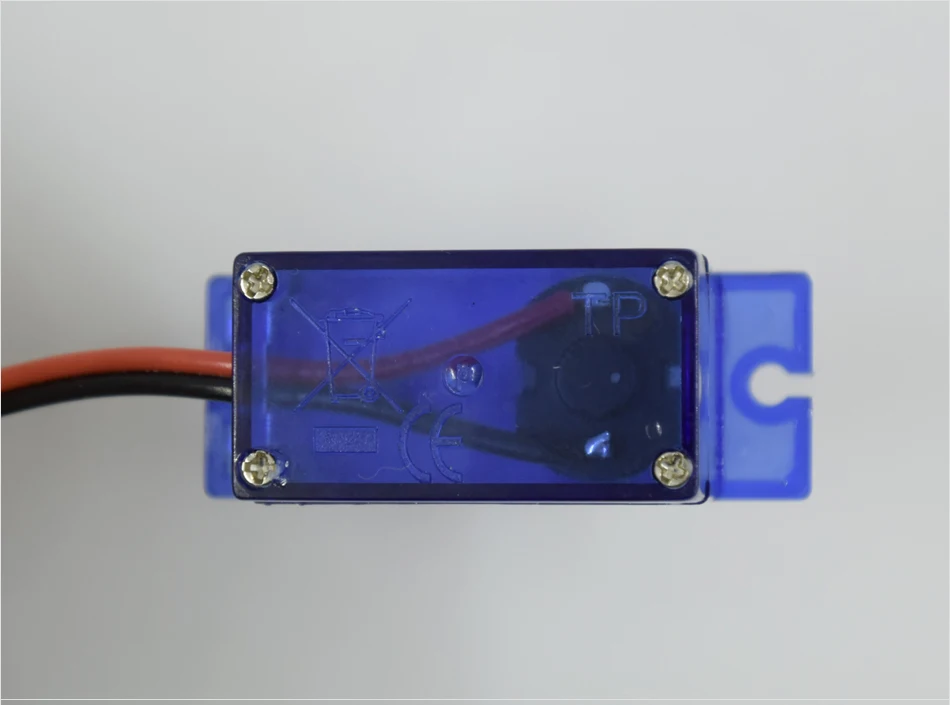

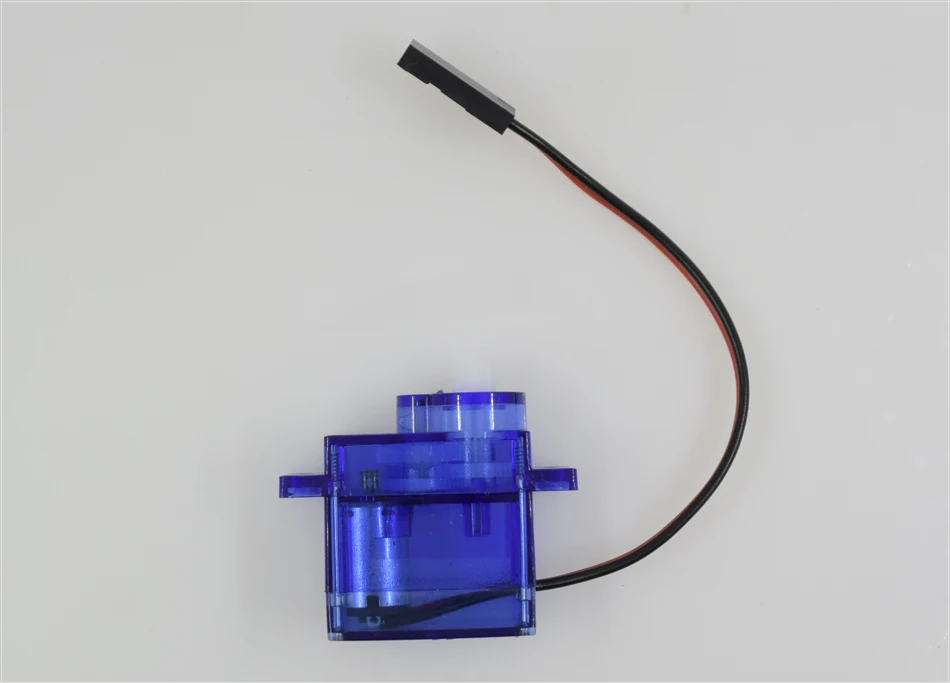

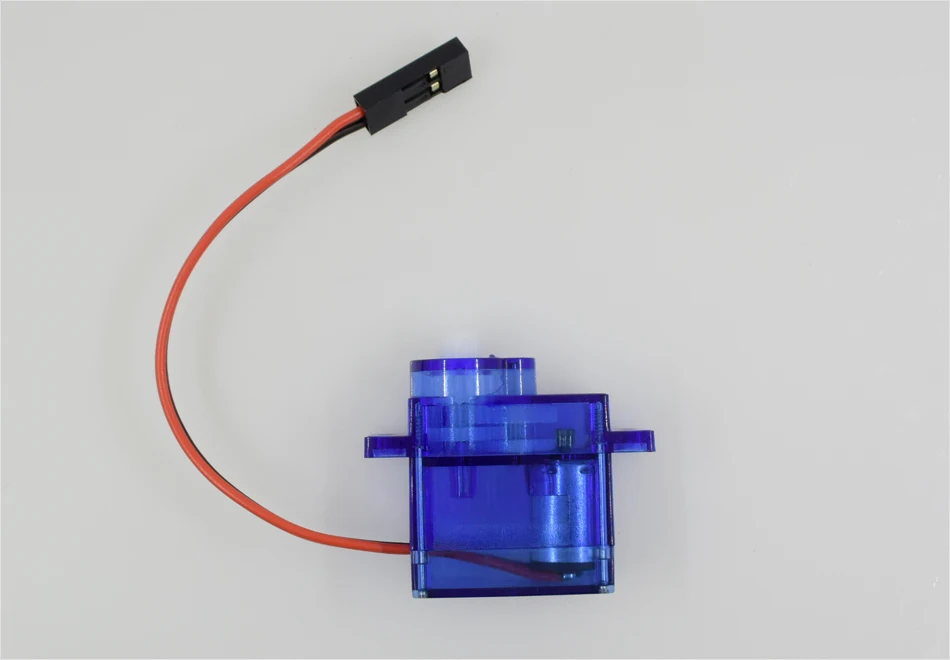

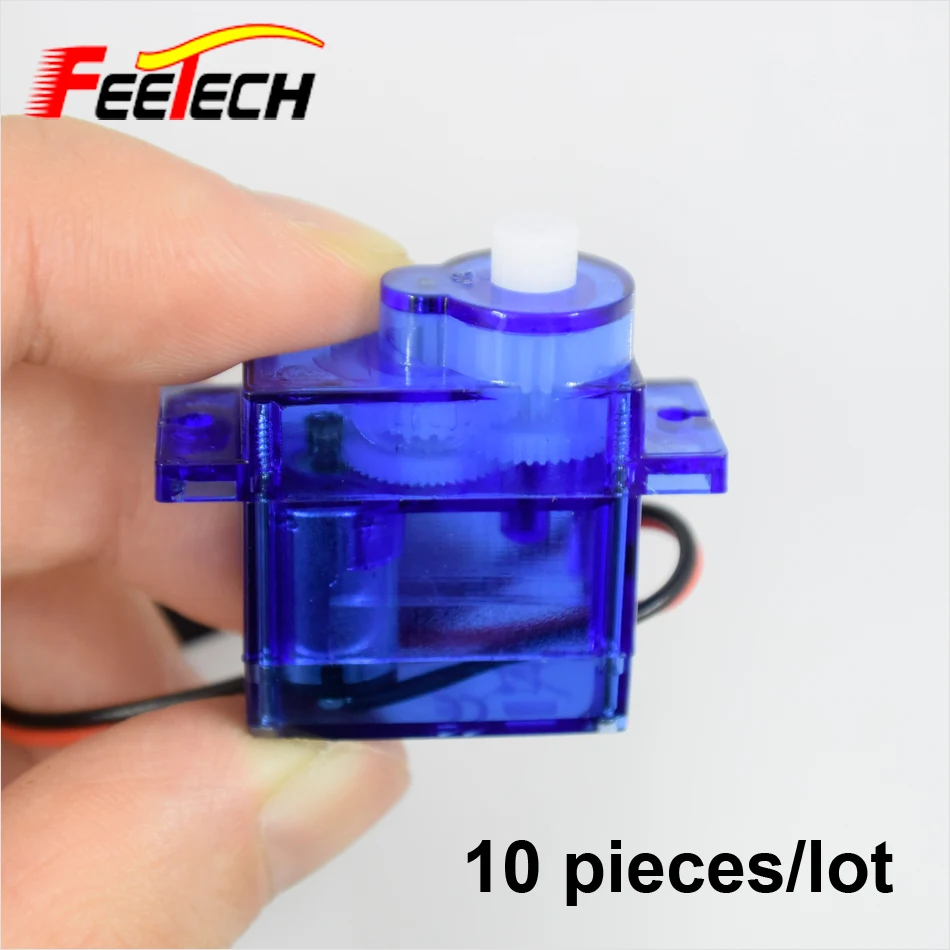

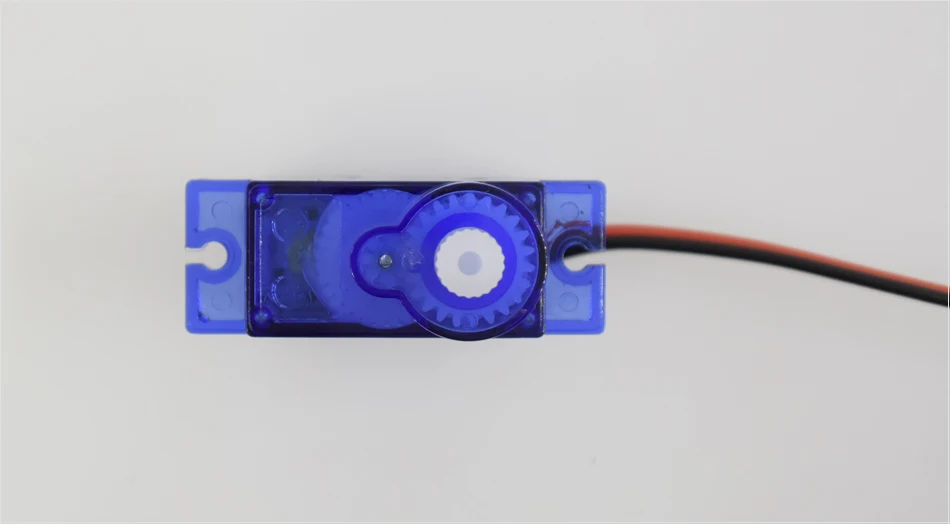

This tiny DC Motor in Micro Servo Body is an interesting motor - it's the same size and shape as our micro servo (like the FS90, FS90R, SG92R) but it isn't a servo. It's more like a DC motor + plastic gear-train in a box. It's not a super powerful motor, it would do well as a little robot wheel. It's also a lot less expensive than a micro servo (continuous or non-continuous) because there is no control board inside. Controlling speed is done by PWM'ing the power leads, controlling direction is done by swapping the power polarity - just like any brushed DC motor.
Runs from 4-6VDC, we've powered it with a Lipoly and 3 alkaline, or 4 NiMH batteries with success. You cannot control this directly from a microcontroller pin! You must have a H-bridge such as a L293D or motor shield.
Motor comes with 2x screws and 2x nuts for mounting to a chassis. No flanges or horns included - it's intended to mate with wheels, like our FS90R-W. There's a screw to attach once they're plugged together. Build a robot vehicle of your own with these little motors driving it!
Packet Content List
Motor (pe bag) x10
Content View
Product Specs
-
Dimensions: 32.3mm x 12.3mm x 29.9mm / 1.3" x 0.49" x 1.2"
-
Spline Count: 21
-
Weight: 8.4g
-
No load speed: 110RPM (4.8v) / 130RPM (6v)
-
Running Current (at no load): 100mA (4.8v) / 120mA (6v)
-
Peak Stall Torque (4.8v): 1.3 kg/cm / 18.09 oz/in
-
Peak Stall Torque (6v): 1.5 kg/cm / 20.86 oz/in
-
Stall Current: 550mA (4.8v) / 650mA (6v)
|
|
Direction :CCW
Operating Angle :120degree
Required Pulse :900us-2100us
Bearing Type :None
Gear Type :Plastic
Motor Type :Metal
Connector Wire Length :15 cm
Product Details View
Feedback
We maintain high standards of excellence and strive for 100% customer satisfaction!
If you are not satisfied with our products or services please contact with us as soon
as posibile, we will try our best to improve the quality of goods and services.
Payment
Accept Escrow.
Refund&Return
- You have 7 days to contact us and 30 days to return it from the date it was received.
- If item is in your possession more than 7 days,it is considered as used and we will not offer you a refund or replacement.
- Artificial damage does not support refund or return
Unit Type:
lot (10 pieces/lot)
Package Weight:
0.21kg (0.46lb.)
Package Size:
21cm x 14cm x 5cm (8.27in x 5.51in x 1.97in)
