Cheap ZD850 Frame Kit with Landing Gear +Hub 350KV Brushless Motor 40A ESC 1555 Propellers For RC DIY FPV Aircraft Hexacopter Low Price

Cheap - ZD850 Frame Kit with Landing Gear +Hub 350KV Brushless Motor 40A ESC 1555 Propellers For RC DIY FPV Aircraft Hexacopter Wonderfull

Low Price - ZD850 Frame Kit with Landing Gear +Hub 350KV Brushless Motor 40A ESC 1555 Propellers For RC DIY FPV Aircraft Hexacopter Cheap

Cheap ZD850 Frame Kit with Landing Gear +Hub 350KV Brushless Motor 40A ESC 1555 Propellers For RC DIY FPV Aircraft Hexacopter

Product ID : 32816581815

Price : $489.99

Discount Price : $347.89

VISIT WEBSITE NOW

Item specifics

•
  Use:
  Vehicles & Remote Control Toys



•
  Material:
  Composite Material



•
  Upgrade Parts/Accessories:
  Frame



•
  Tool Supplies:
  Putty class



•
  Four-wheel Drive Attributes:
  Assemblage



•
  RC Parts & Accs:
  Motor Components



•
  Model Number:
  F19833-E



•
  Brand Name:
  jmt



•
  Remote Control Peripherals/Devices:
  Motor



•
  521:
  366212


Product Description

RM1641845738472717





ZD850 Frame Kit with Landing Gear +Hub 350KV Brushless Motor 40A ESC 1555 Propellers For RC DIY FPV Aircraft Hexacopter F19833-E

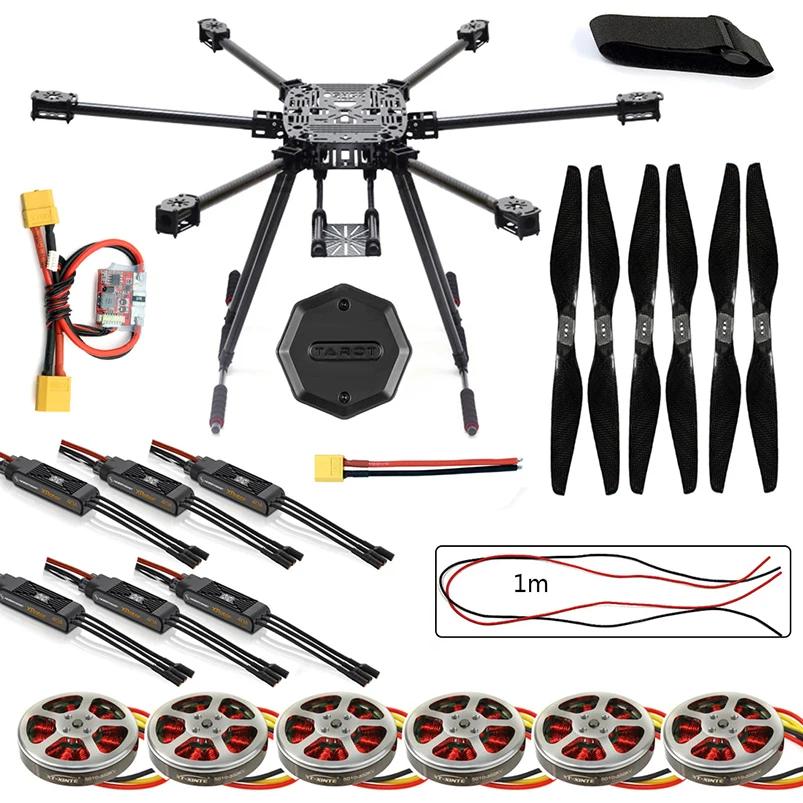

Pacakge Listing :

ZD850 Full Carbon Fiber Frame Kit with Unflodable Landing Gear Foldable Arm *1

350KV Brushless Disk Motor high Thrust With Mount *6

(HobbyWing XRotor-Pro-40A ESC*6

Suitable APM2.8 2.6 2.5 2.52 and PIXHAWK Power Module*1

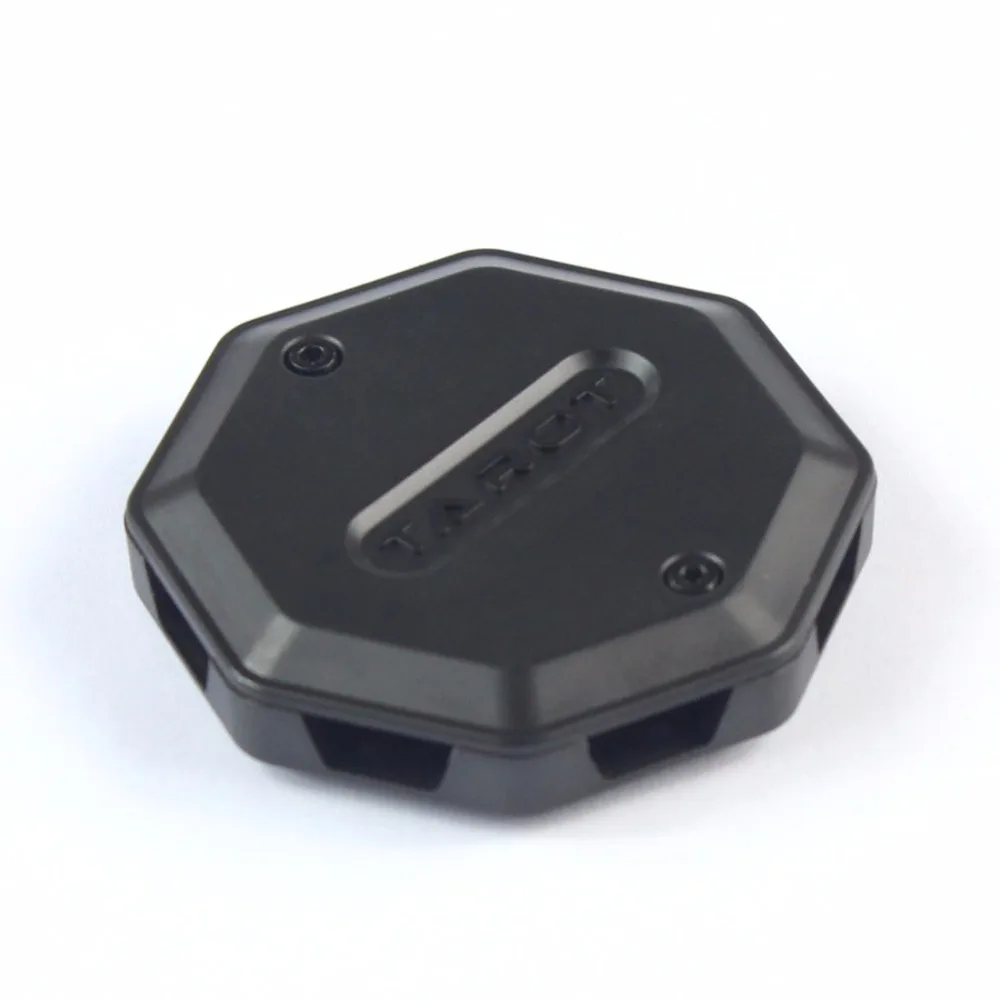

Tarot TL2909 6-axle Hub *1

Three-hole Carbon Fiber 15x5.5 1555 Propeller CW CCW *3 Pairs

Hook & Loop Fastening Tape TREX 500 600 *1

1m Black and Red 16AWG Silicon Wire Connecting Wire *1

XT60 Male with Wire 14AWG 10cm *1



Spacifications :

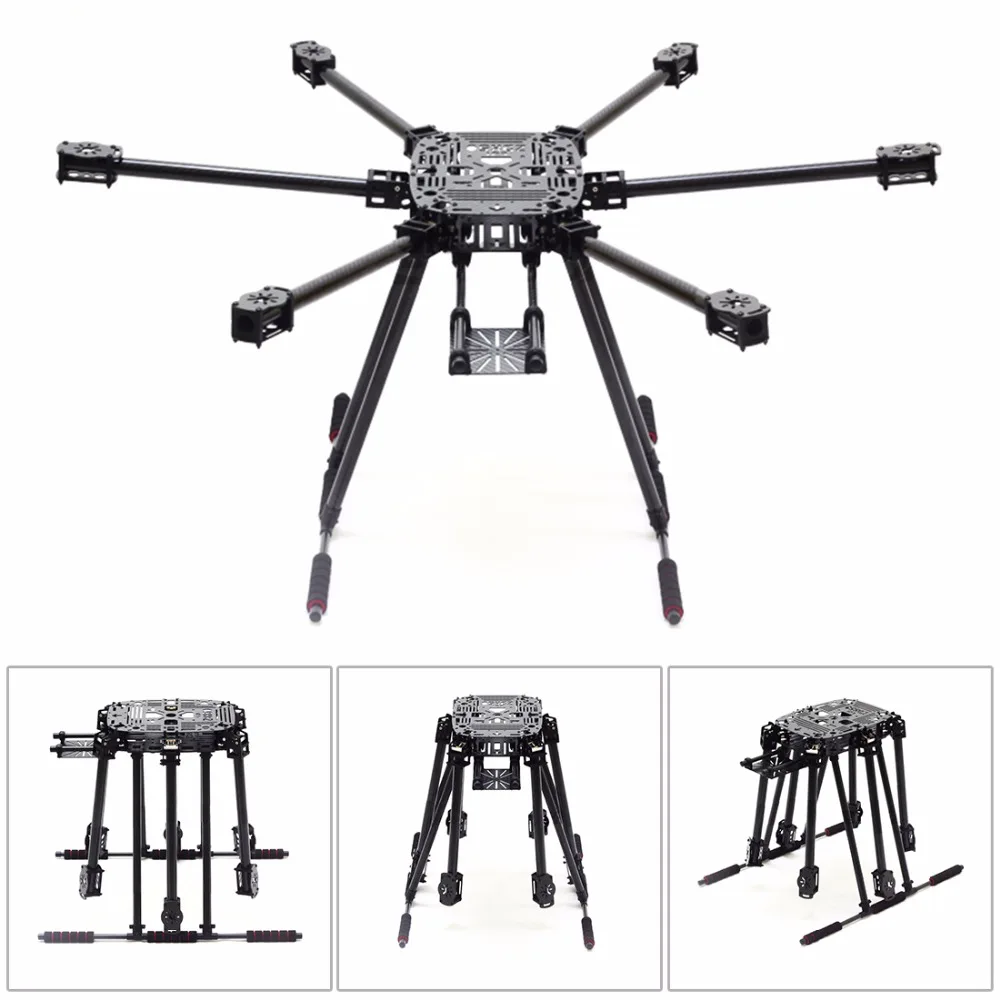

----------Z850 Frame Kit ------------

Arm with upturned 5 ° force to play to the extreme, larger diameter 20mm carbon tube.

Aluminum Folding, Nylon Clamp (Tightened Clamp) 8 hole motor mount, compatible with more motors.

Motor Block Diagonal wheelbase of about 850mm, maximum support 16-inch paddle.

Center plate size 245mm * 180mm more space, the middle plate height of about 35mm.

Hook head with 10 * 330mm long carbon tube, can be free to stretch the length you want, with the porous bit PTZ board.

Tripod with a diameter of 16mm carbon tube, height 350mm, tripod crossbar 500mm, more stable grounding area.

Tripod with double-tube carbon fiber as support, bear the force of more than 50kg.



parameter:
20mm carbon tube arm
16mm + 10mm carbon tube tripod
3.0 mm botton center plate
1.5mm upper center plate
Aluminum alloy folding pieces
Nylon mixed carbon pipe clamp
Plastic tripod connection (force 50kg)
The net weight of frame kit  is about 1210g

Recommended items(not included):
3508-380kv motor
6s 22.2v 25c Lithium battery
1555/1547 15 inch cw ccw props





----------350KV Brushless Motor------------

1, the use of a hidden motor shaft design, more effective protection of the motor shaft.

2, the use of a new type of propeller design, performance is more stable, demolition is more convenient.

3, the use of the 0.2mm stator, the load temperature lower, increase in efficiency.

Excellent workmanship, quality assurance, energy saving high efficiency









Features:

1. Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.

2. Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.

3. Programmable Items:Brake Setting: brake enabled / brake disabled.

Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).

Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.

Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.

Start Mode: normal / soft / very soft.

Timing: low / medium / high.

Reset: resetall the programmable items totheir default settings.

4. Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.



Advantages:

1. Military standard capacitorof extreme low resistance increases the ability of prevention of unwanted RF noise during flying.

2. Extreme low resistancePCB is usedatthe power output section, the whole ESC hassuper current endurance capability.

3. Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.

4. Compatible with Hobbywing's.











Thank you for you choose our product , we are trustworthy ,if you have any questions ,please message us freely , we would like to try our best to solve your issue .













Packaging Details

•
  Unit Type:
  piece



•
  Package Weight:
  4.0kg (8.82lb.)



•
  Package Size:
  20cm x 15cm x 15cm (7.87in x 5.91in x 5.91in)
